Refrigerated vs. Deep Cryogenic Tanks: A Practical Guide for N2O & Cryogenic Storage
Share
Understand the working principles, use cases, and cost drivers to choose the right tank for nitrous oxide (N2O), LNG, industrial gases, and biostorage.

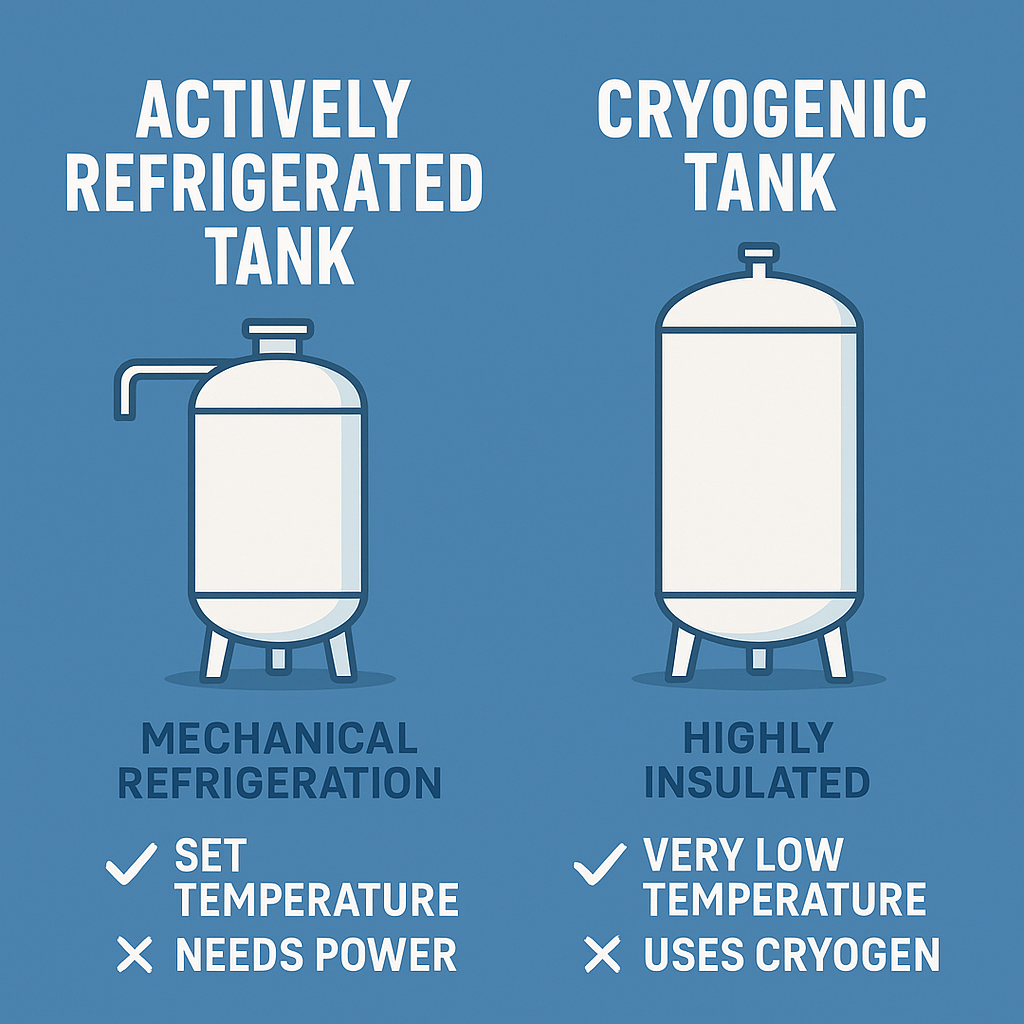

Quick comparison: active refrigeration vs. deep cryogenic (vacuum insulated) storage.
Why the Choice Matters
In cryogenic operations—especially for N2O, industrial gases, and biological materials—the storage vessel you choose impacts temperature stability, product integrity, operating cost, and safety compliance. This article compares two mainstream designs:
- Refrigerated cryogenic tanks (active cooling) — mechanically remove heat from the chamber.
- Deep cryogenic tanks (passive insulation) — rely on high vacuum and multi-layer insulation to minimize heat ingress while the cryogen provides the cold source.
1) Refrigerated Cryogenic Tanks (Active Cooling)
These systems use a refrigeration cycle (compressor, condenser, evaporator, expansion device, and controls) to actively extract heat. Precise control makes them ideal for materials that must not freeze or for processes requiring setpoints such as −25 °C, −40 °C, or −80 °C.
- Typical range: −40 °C to −150 °C
- Stability: high precision (≈ ±1 °C)
- Dependency: continuous electrical power
- Evaporation loss: negligible (not relying on cryogen boil-off)
- Use cases: pharmaceuticals, vaccines, blood, food/chemical intermediates, research samples needing tight control
2) Deep Cryogenic Tanks (Passive, Vacuum-Insulated)
Often called “super-insulated” vessels, these tanks use a vacuum jacket and multi-layer insulation (MLI) to reduce heat leak. They do not generate cold; instead, the stored cryogenic liquid (e.g., LN2, LOX, LNG) provides the cooling capacity.
- Typical range: < −150 °C (commonly −196 °C with LN2)
- Design: few moving parts, high reliability
- Dependency: periodic cryogen replenishment
- Evaporation loss: inherent boil-off (managed via venting/BOG)
- Use cases: liquid nitrogen/oxygen/argon, LNG, stem cells, genetic samples, cryobiology
Side-by-Side Comparison
| Feature | Refrigerated Tank | Deep Cryogenic Tank |
|---|---|---|
| Cooling principle | Active mechanical refrigeration | Passive vacuum insulation + MLI |
| Temperature range | −40 °C to −150 °C | Below −150 °C (often −196 °C) |
| Control & stability | Precise setpoint, ±1 °C | Depends on insulation & refill cycle |
| Primary dependency | Electric power | Cryogenic liquid availability |
| Operating cost driver | Electricity consumption | Liquid replenishment (boil-off) |
| Typical applications | Pharma, vaccines, blood, food & chemicals | LN2/LOX/LAr, LNG, cryobiology samples |
How to Choose
Choose a Refrigerated Tank if you need…
- Stable, adjustable setpoints (e.g., −25 °C / −80 °C)
- Dry storage (no immersion) and tight temperature tolerance
- Minimal handling of cryogenic liquids
Choose a Deep Cryogenic Tank if you need…
- Ultra-low temperatures (to −196 °C)
- Storage of cryogens themselves (LN2, LOX, LNG)
- Simple, robust hardware with few moving parts
Related Product: Food-Grade N2O
For food applications and whipped-cream systems, see: Food-Grade Nitrous Oxide (N₂O) – Gazmi.
See the Visuals
- 📌 Pinterest infographic: https://pin.it/1LbBJGrRy
- 📷 Instagram post: View on Instagram
Safety & Compliance Notes
- Follow local codes/standards for cryogenic installations, ventilation, and relief devices.
- Provide oxygen monitoring/venting where boil-off may occur.
- Use certified valves, transfer lines, and PPE appropriate to cryogenic service.
